Diamondback XP Series
ZERO-TURN MOWER

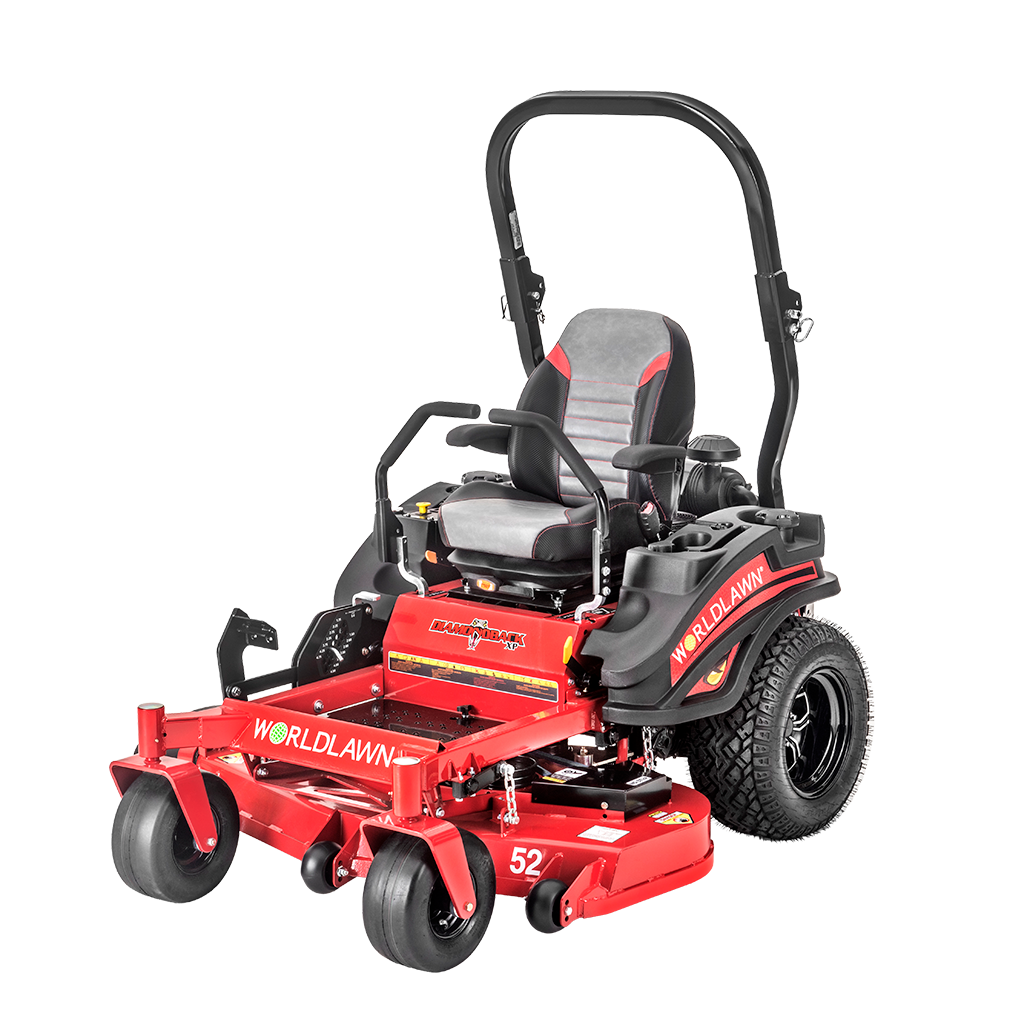

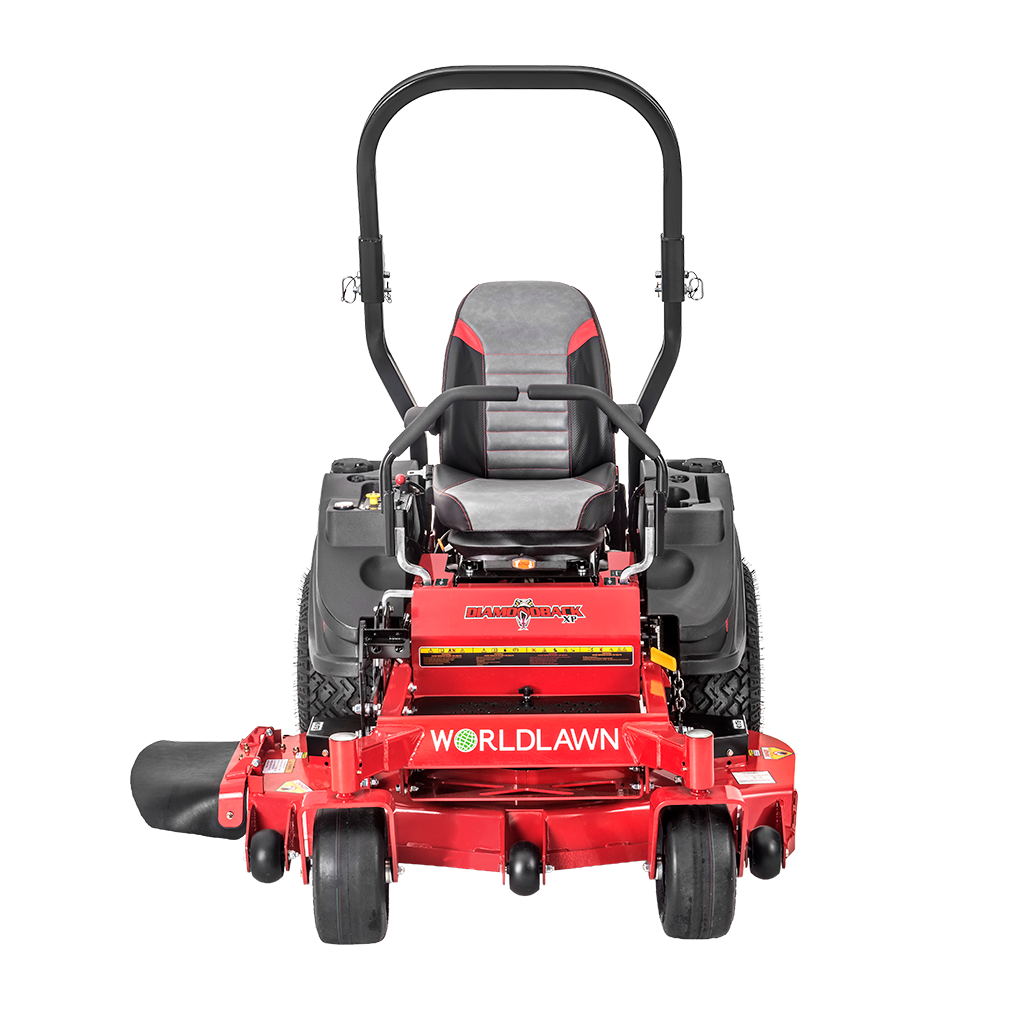

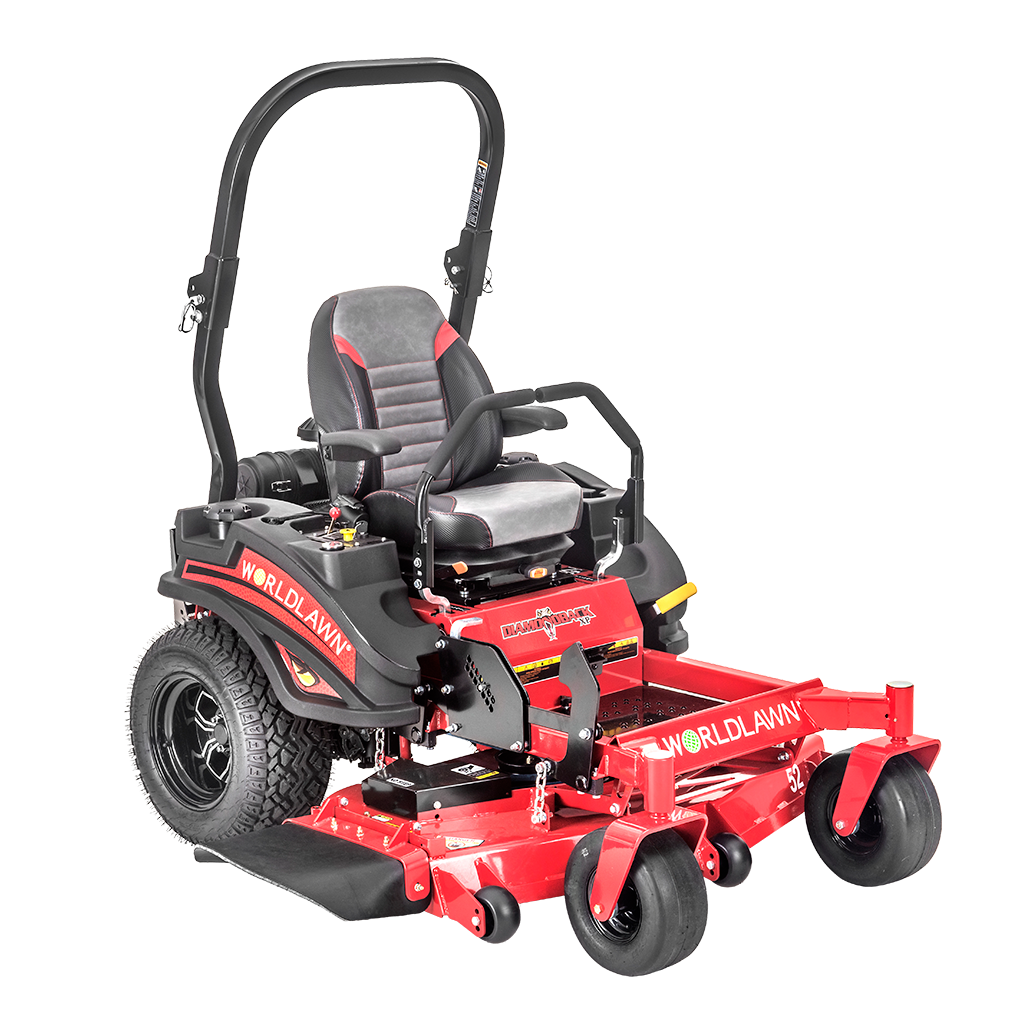

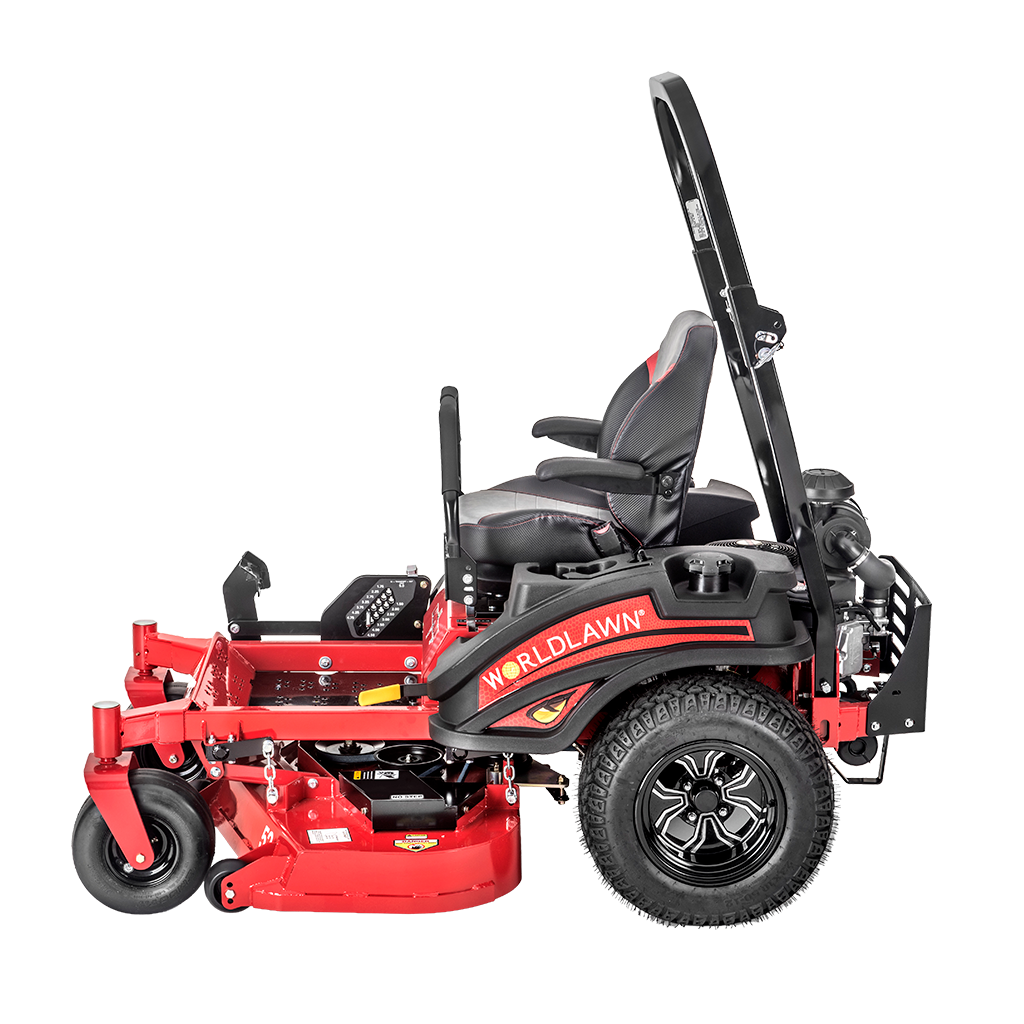

Diamondback XP Series
Kawasaki FX Series Engines | 52" & 60" Deck Options
The Diamondback XP is a commercially built, consumer-priced zero-turn mower designed to deliver durability, reliability, and exceptional value. Available with 52-inch and 60-inch cutting decks, the Diamondback XP features Kawasaki FX Series engines, an 8-gauge steel deck, and a Hydro-Gear ZT-3400 transmission for a fast, smooth ride.
Key Features:
52" or 60" cutting deck options
Kawasaki FX691V engine on 52" model
Kawasaki FX730V engine on 60" model
22 HP on 52" model
23.5 HP on 60" model
8-gauge steel deck
Hydro-Gear ZT-3400 transmission
1.5"–4.75" cutting height
R.O.P.S. standard
Triple-layer spindle support
10 mph forward speed
Powered reverse
16-gallon fuel capacity
3-year limited warranty
SPECIFICATIONS
| Worldlawn Diamondback XP Specifications | |
|---|---|
| Available Deck Sizes | 52", 60" |
| Engine Options | Kawasaki FX691V, FX730V |
| Horsepower | 22–23.5 HP |
| Transmission | Hydro-Gear ZT-3400 |
| Cutting Height | 1.5"–4.5" |
| Mower Type | Zero-Turn |
| Best For | Heavy-duty residential and professional use |
Note: Specifications, models and availability are subject to change. Contact Wilson Farmers Co-op for current availability, pricing and additional information.

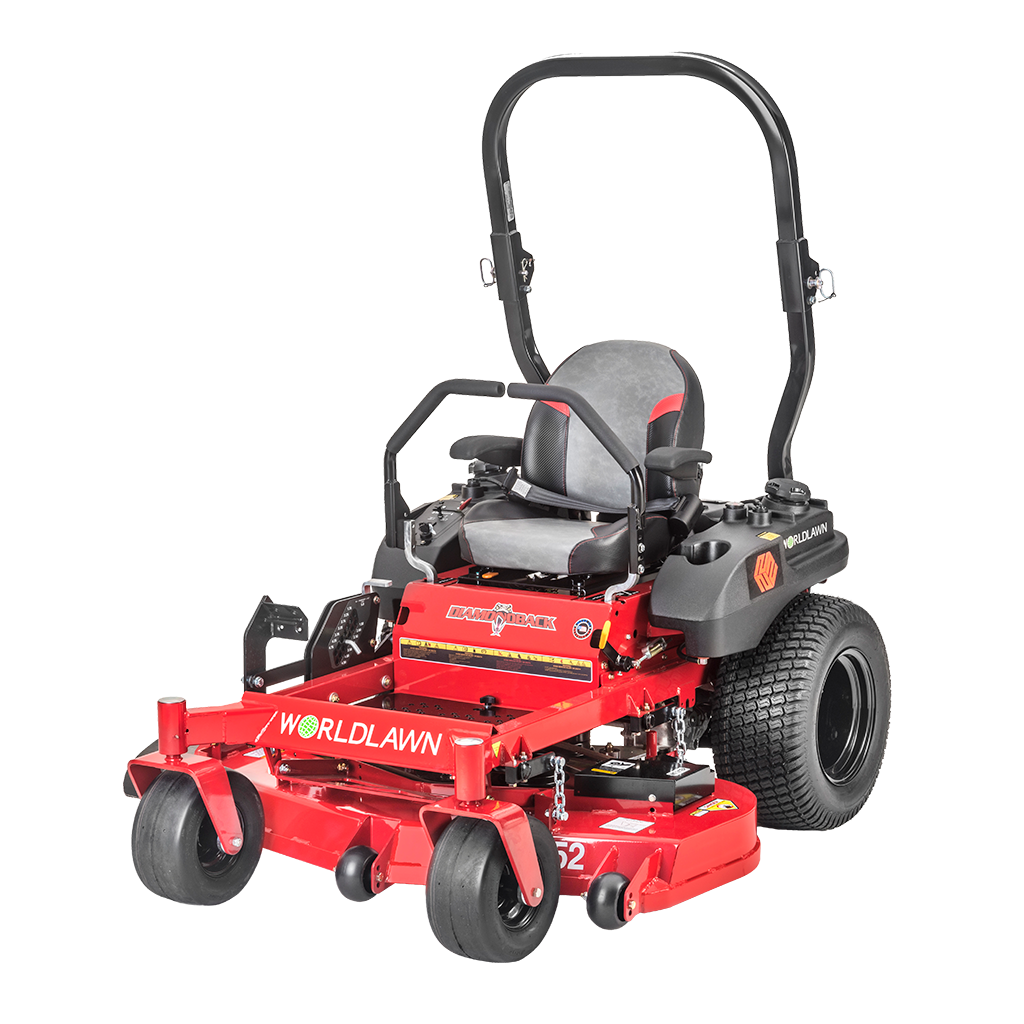

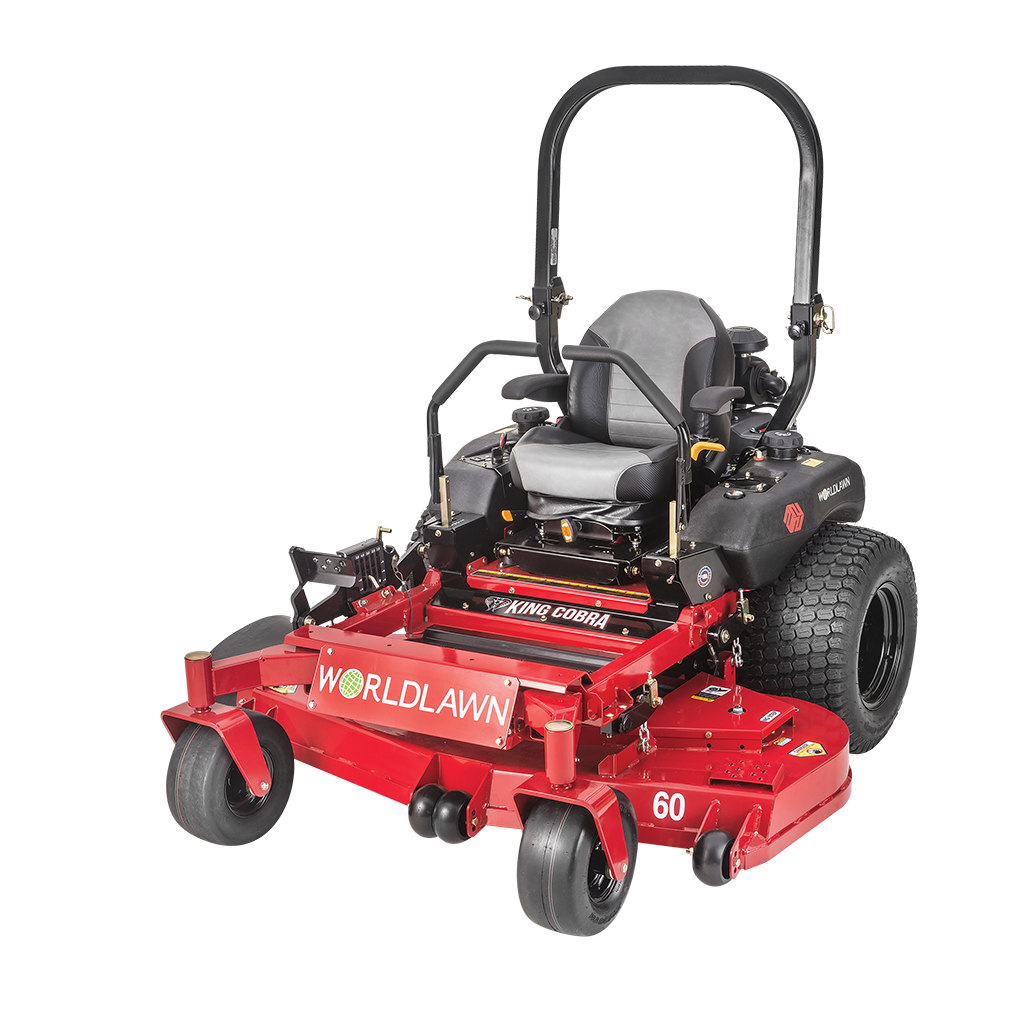

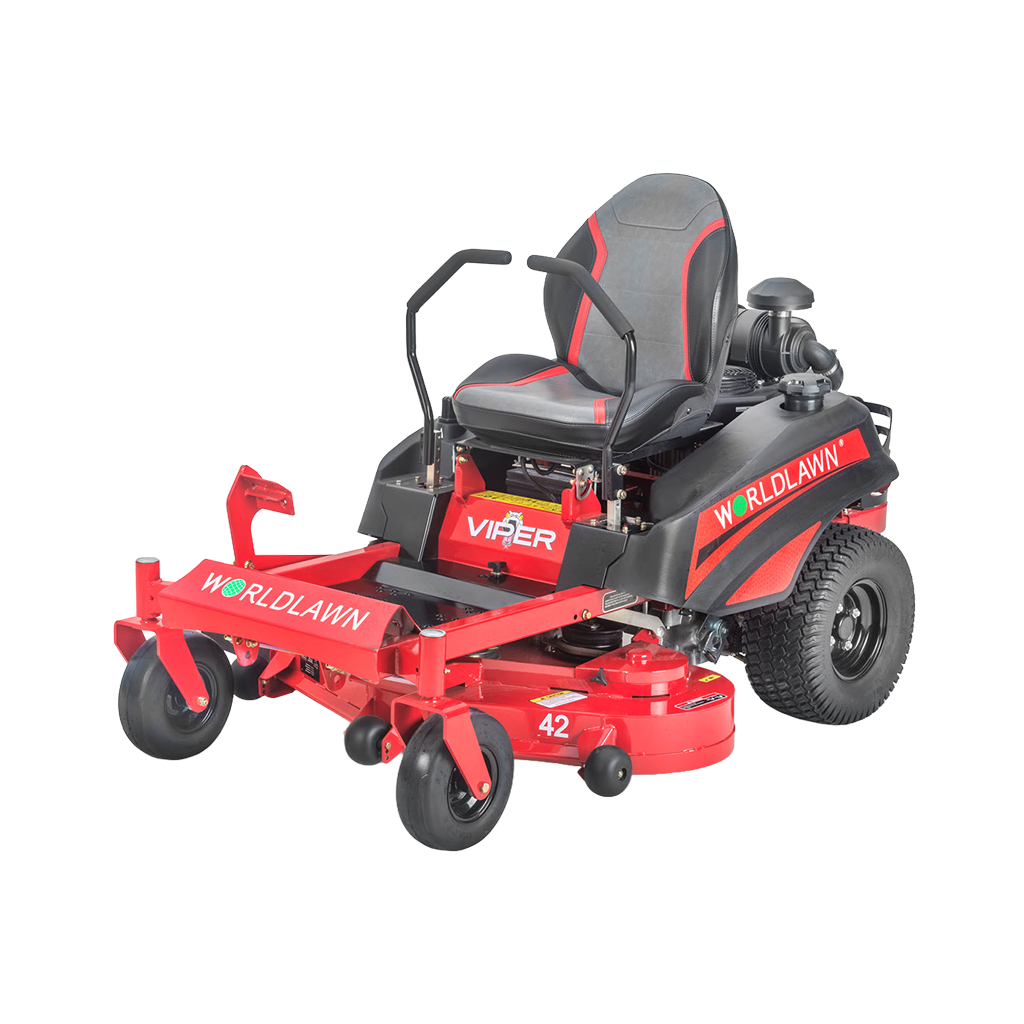

Other Worldlawn Mowers
